SLIDE SCREW

SS TYPE

Maintenance is easy and installation is simple. Although it may be difficult to pursue accurate positioning, by fully utilizing the characteristics of the slide screw, it can be used in the conveying sections of various types of equipment.

SS TYPE

Features

The NB SLIDE SCREW is a unique drive device that effectively utilizes the friction between the radial ball bearing and the shaft to convert rotational motion into linear motion.The NB SLIDE SCREW consists of two aluminum blocks with three bearings on each end face, each with a fixed angle to match the lead. A round shaft is inserted between the two blocks and rotated to achieve linear motion according to the contact angle between the shaft and bearing outer ring. The bearing is designed to be used in a wide variety of applications. The load can be adjusted with a spring-loaded hexagon socket head cap bolt.

Straight line drive is possible with a round shaft

The NB slide screw uses a round shaft to easily accommodate long strokes.

High machine efficiency

The SEBS-BM model uses a stainless steel return cap to ensure that all components are made of stainless steel, making it ideal for special environments such as high temperatures, clean rooms, and vacuums.

Can be used without refueling

The bearings on both sides are greased, so lubrication is not necessary unless there is corrosion or other problems with the driveshaft.

Overload prevention mechanism

In the event of an abnormal overload, the machine will stop due to slippage, preventing accidents from occurring.

Structure

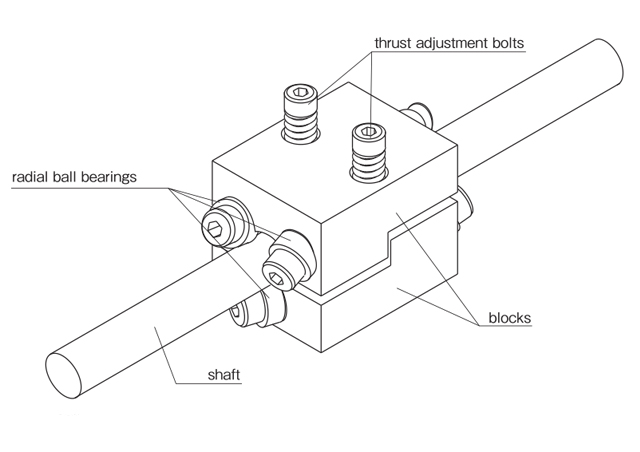

Structure of SS type

Structure of SS type
