Inspection, Measurement
-
-
-
Inspection,Measurement

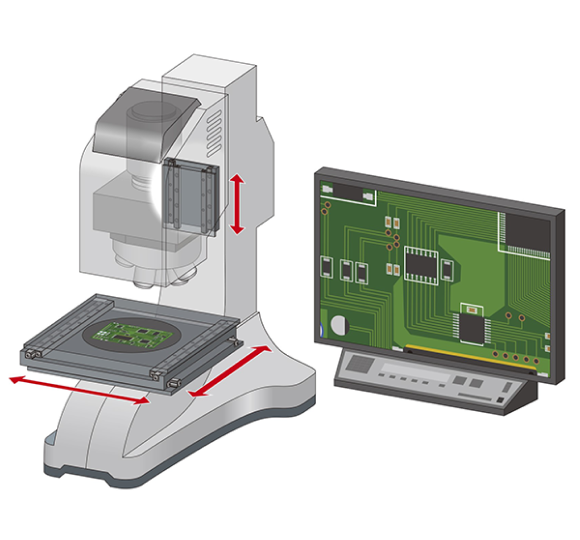

Digital Microscope
- Equipment for inspecting appearance and dimensions. When using a high maginification, high rigidity is required in the motion because vibrations affect image blur.
- Superior rigidity minimizes the effects of external disturbances and vibrations.
-
- NV・HV・SV
- Compared to conventional models, the NV and HV series feature a smaller roller pitch and larger roller contact length, providing superior rigidity and effectively reducing external vibrations.
-
-
-
-
-
-
Inspection,Measurement

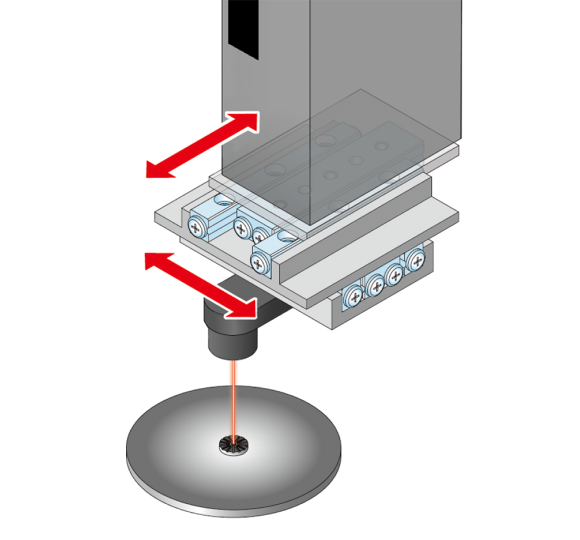

Laser Doppler Vibrometer
- The object is measured by measuring how the laser beam reflects from the object. Precise positioning enables accurate scanning of the object.
- Achieve precision scanning with light and smooth motion.
-
- NVW・HVW・SVW
- In addition to high precision and high rigidity, our products feature light and smooth motion, offering excellent responsiveness to fine-control commands.
-
-
-
-
-
-
Inspection,Measurement
Nanoindenter
- An instrument designed to evaluate mechanical properties, such as hardness and Young's modulus, by pressing a diamond indenter into the sample surface.
- Superior rigidity for more accurate evaluations!
-
- NVW・HVW・SVW
- The NV and HV series offer higher rigidity than conventional models, minimizing unwanted displacement during indentation testing and enabling more accurate results.
-
-
-
-
-
-
Inspection,Measurement
Raman Spectrometer
- A spectrometer used to evaluate the molecular structure and physical properties of substances. The rigidity and positioning accuracy of the sample stage are key factors in enhancing the resolution of Raman mapping.
- High-precision guidance for superior resolution.
-
- NV・HV・SV
- Due to its exceptionally smooth motion, the SLIDEWAY accurately tracks even minute increments, enabling high-precision positioning and contributing to further improvements in resolution.
-
-
-
-
-
-
Inspection,Measurement
Scanning Electron Microscope
- A microscope that observes sample surfaces using electron beams. To prevent any adverse effects on the electron beam, the system must be constructed with components compatible with vacuum environments and non-magnetic requirements.
- Supporting high-precision SEM measurements with non-magnetic and vacuum-compatible solutions.
-
- NV・HV・SV
- In addition to our standard all-stainless steel specifications for vacuum environments, we offer customization with non-magnetic materials. This ensures stable, high-precision measurement unaffected by magnetic fields or air interference.
-
-
-
-
-
-
Inspection,Measurement

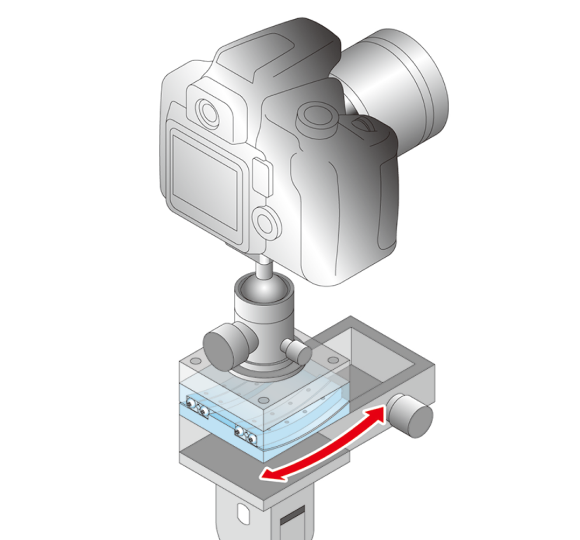

Geared Head
- A mechanism that adjusts the direction and angle when changing the camera's angle of view.
- Ideal for precision angle adjustment of telephoto lenses and optical systems.
-
- RV・RVF
- Unlike conventional sliding-contact methods, our rolling-element design requires no clearance, effectively preventing table play and ensuring stability during angle adjustment.
-
-
-
-
-
-
Inspection,Measurement

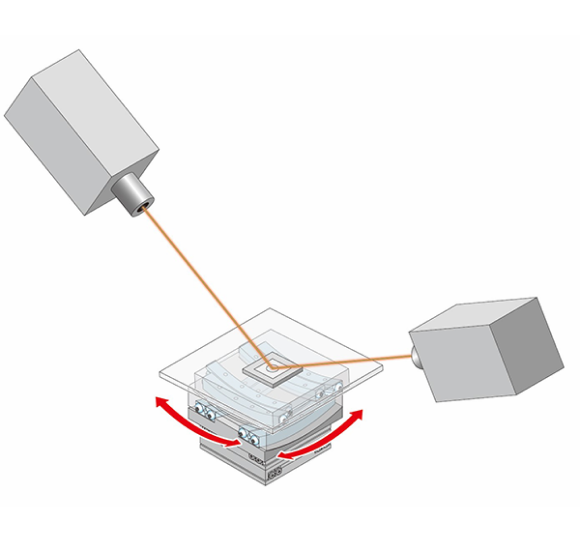

X-ray Diffraction Machine
- A device that can analyze the crystal structure and molecular structure of a sample by irradiating it with X-rays. High accuracy positioning and angle adjustment are required.
- Precision angle adjustment—made possible by rolling-contact technology.
-
- RV・RVF
- This rolling system requires no gap, preventing wobble on the sample table. Ideal for optical and measuring instruments that require high precision.
-
-
-
-
-
-
Inspection,Measurement

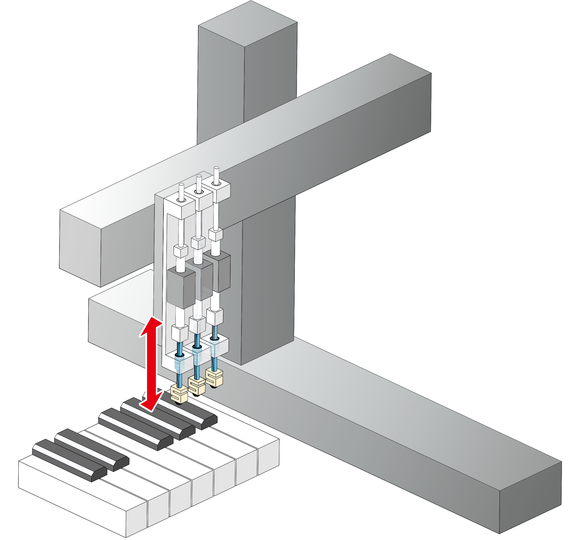

Hammering Test Machine
- This equipment inspects the key-strike force of synthesizers. To enable simultaneous testing at multiple points, a compact design is essential.
- Boost inspection efficiency with multi-unit arrays enabled by compact outer cylinders.
-
- SSP-AM
- Our industry-leading compact outer cylinder is ideal for multi-unit configurations. Since it can handle torque loads, it can also function as an effective anti-rotation mechanism.
-
-
-
-
-
-
Inspection,Measurement

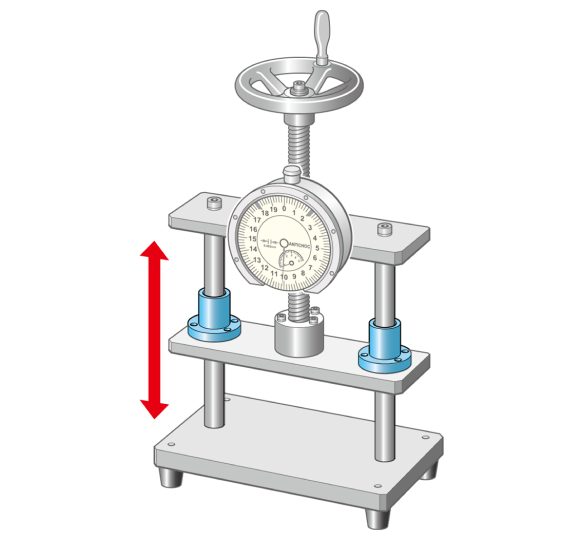

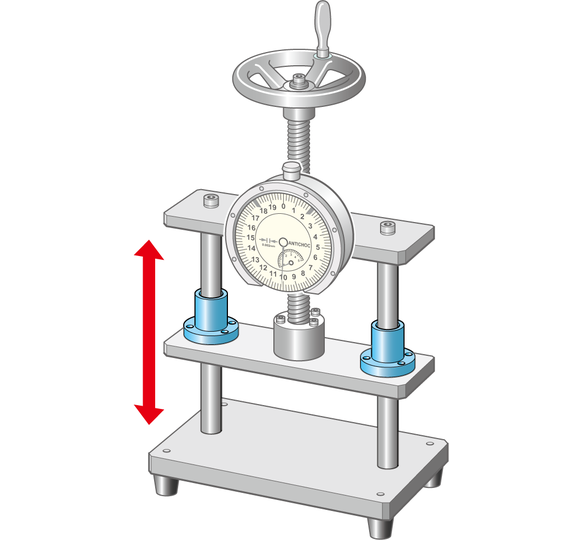

Universal Testing Machine
- Equipment used to check the physical properties of materials against compression and for destructive tests by compression.There are a vatiety of size such as tabletop to larger size.
- The industry's leading lineup!
-
- SM・GM
- Offered in a wide variety of sizes for easy selection regardless of the size of the test machine.
-
-
-
-
-
-
Inspection,Measurement

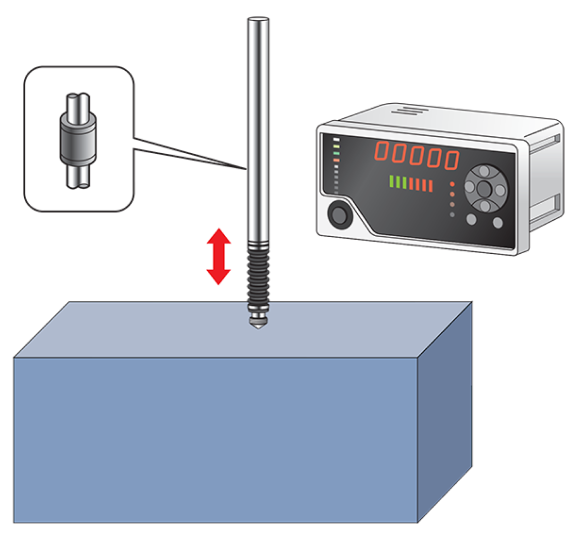

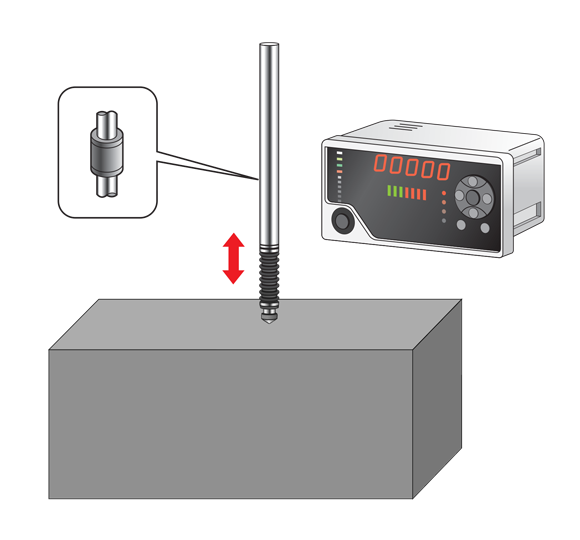

Linear Gauge
- Device that measures the dimensions and displacement of objects. Vibration in the moving parts can cause measurement errors.
- Zero clearance for high-precision measurement.
-
- SM＋SN
- By selecting the FIT series (matched clearance products), we can provide a specific target clearance when combined with the shaft.
-
-
-
-
-
-
Inspection,Measurement

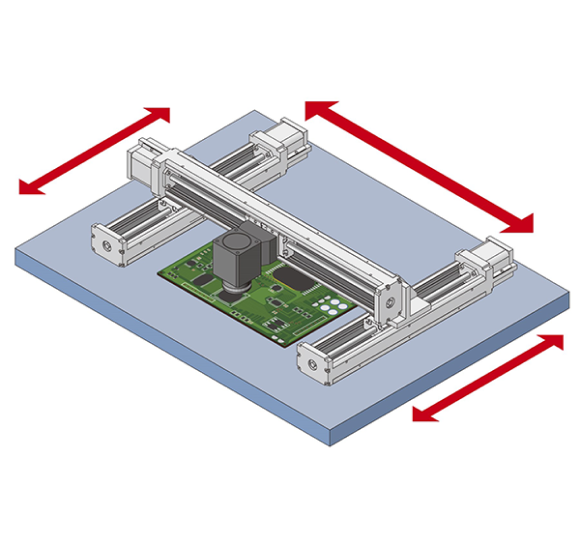

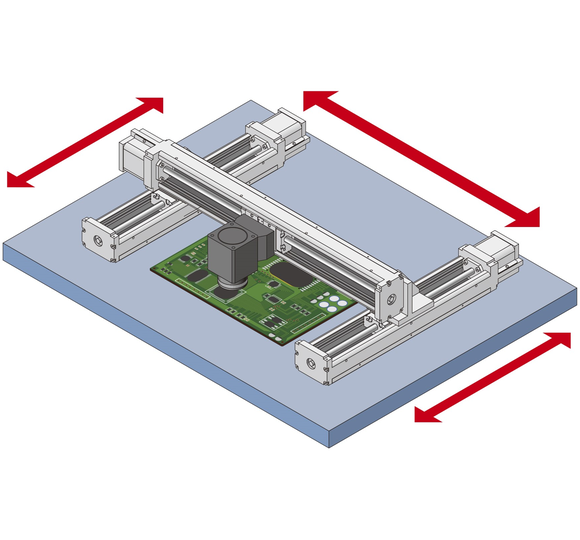

PCB Inspection Machine
- Equipment for inspecting surface-mounted printed circuit boards (PCBs). With traces as fine as tens of microns, there is an increasing demand for even higher precision in motion control.
- Reduce man-hours with precision inspection via Cartesian robots.
-
- BG
- We guarantee a repeatability of ±1 μm, making it ideal for micro-inspection. By utilizing Cartesian robots built from combined single-axis actuators, you can significantly reduce design and assembly man-hours.
-
-
-
