Medical, Bio
-
-
-
Medical・Bio

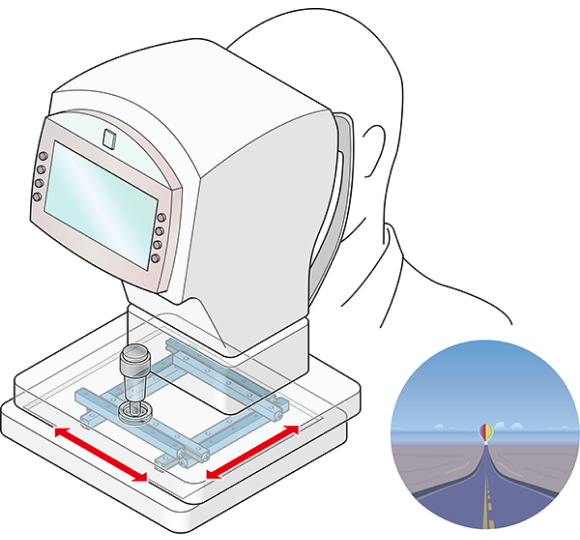

Refraction Tester
- A device that measures the severity of farsightedness, nearsightedness, and astigmatism. Quiet movement is required since the device operates close to the human body.
- Compact, lightweight, and whisper-quiet—minimizing the strain on patients.
-
- NV・HV・SV
- Non-recirculating systems provide smooth movement and minimum noise. It is possible to reduce operating noise to an extremely low level.
-
-
-
-
-
-
Medical・Bio
Surgical Microscope
- A surgical microscope used in operating rooms. It provides illumination and magnified observation of the surgical field.
- Contributing to more compact microscope bodies and enhanced maneuverability!
-
- NV・HV・SV
- The light, smooth motion provides precise tracking for pedal and manual operations. Its compact XYZ-axis design allows for a smaller microscope body, making it easier to secure an ample workspace.
-
-
-
-
-
-
Medical・Bio

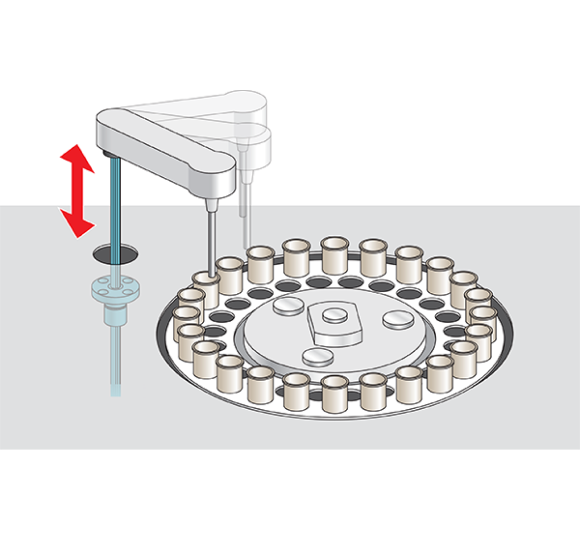

Clinical Automated Analyzer
- A device that uses blood and other tissue samples for analysis. Accurate rotational positioning and smooth linear movement are required to prevent samples and reagents from spilling.
- Boost throughput with higher rotation speeds!
-
- SSP
- The 4-row Gothic arch groove structure provides high torque rigidity, contributing to fast and accurate positioning in the rotational direction.
-
-
-
-
-
-
Medical・Bio

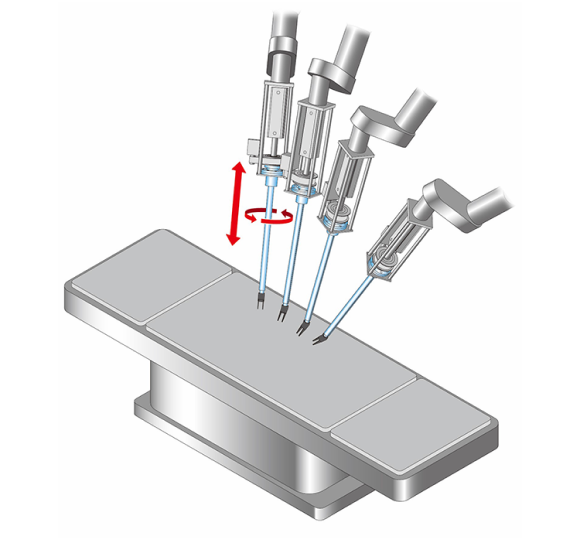

Surgical Support Robot
- A surgical robot that allows surgery to be perfomred remotely. When performing tasks such as cutting and stitching with the tips of forceps, precise movement is required not to injure human body.
- Compact arms, precision touch: Enabling delicate operations through miniaturization.
-
- SPR
- The rotating section features a cross-roller structure, providing a compact yet highly rigid design. This enables surgical procedures that require precise and delicate operations.
-
-
-
-
-
-
Medical・Bio

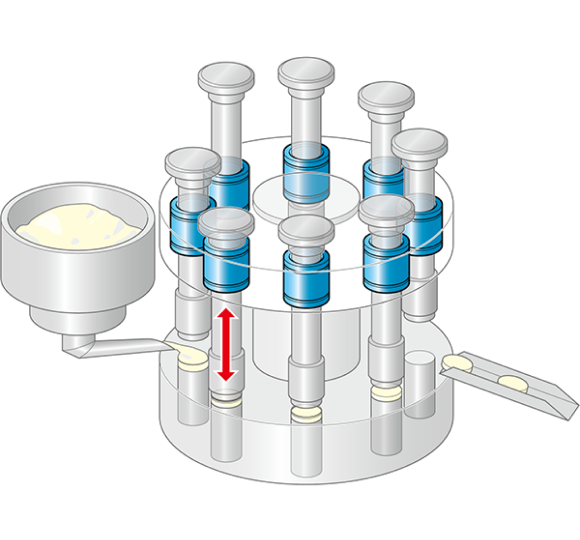

Tablet Pressing Machine
- Compresses powdered material and forms it into a tablet shape. Compression for tableting requires accurate and repetitive linear motion.
- The industry's leading lineup!
-
- SM・GM
- Achieve accurate and smooth linear motion at a low cost. Our extensive lineup allows you to select the perfect solution to meet your specific equipment needs.
-
-
-
-
-
-
Medical・Bio

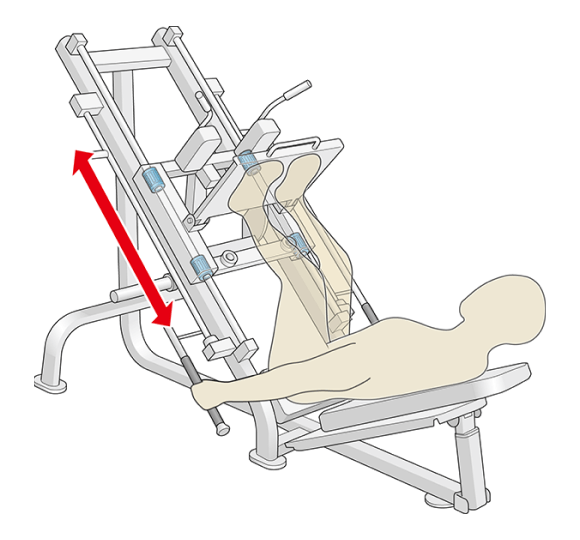

Fitness Machine
- A machine used for weight training and rehabilitation. Smooth movement is required to directly transmit the load to human body.
- Absorb mounting errors and eliminate operational failures!
-
- TK
- The self-aligning feature allows for smooth movement even if the axes are not precisely in parallel, leading to a reduction in assembly time of the machine.
-
-
-
-
-
-
Medical・Bio

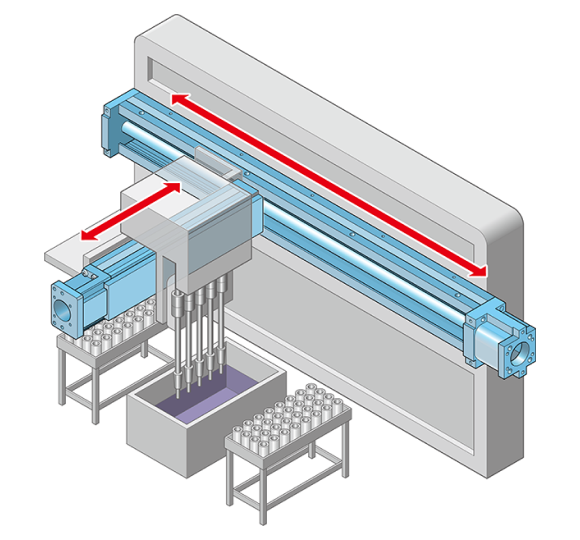

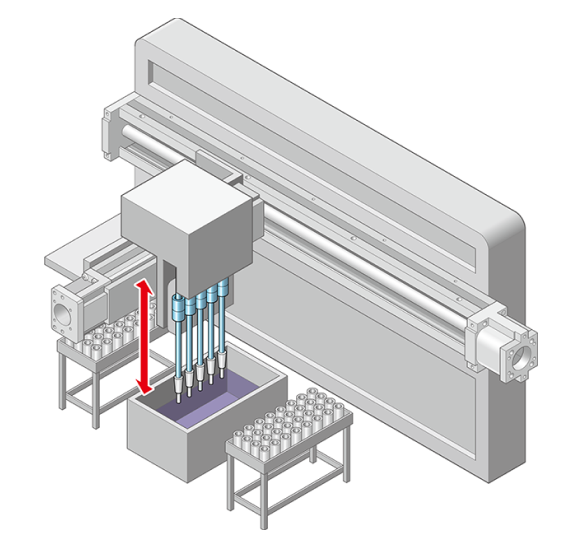

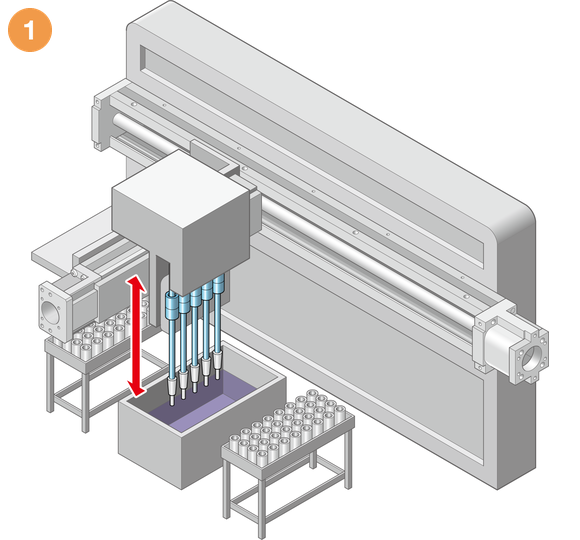

Automated Dispenser
- A device that measures and dispenses liquids and reagents. Required to accurately and quickly perform a large amount of work that cannot be done by humans.
- Increased efficiency through faster speeds and multiple shafts.
-
- 1SSP
- Multiple spline nuts can be fitted into a limited space due to its compact size. Spline groove also allows torque transmission.
-
- 2BG
- High rigidity minimizes vibrations that occur during acceleration and deceleration, enabling higher speeds without disturbing liquid. Transport reagents with high precision and repeatable positioning.
-
-
-
-
-
-
Medical・Bio

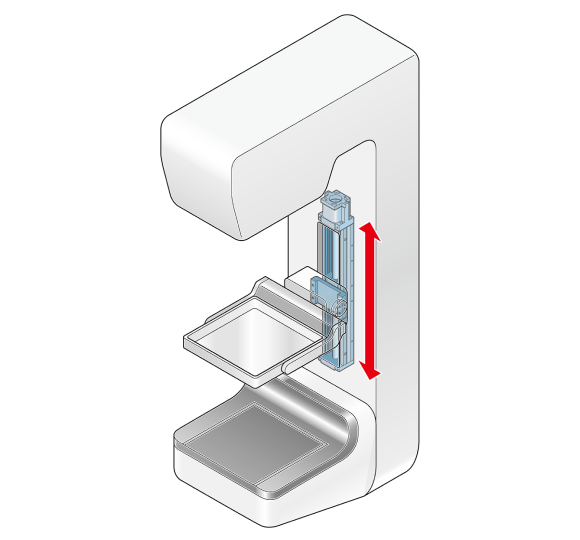

Mammography
- Breast X-ray examination device.
- Adjustment-free and easy to install.
-
- BG
- Accuracy is guaranteed as a pre-assembled unit, eliminating the need for tedious manual adjustments and significantly reducing assembly labor hours.
-
-
-
-
-
-
Medical・Bio

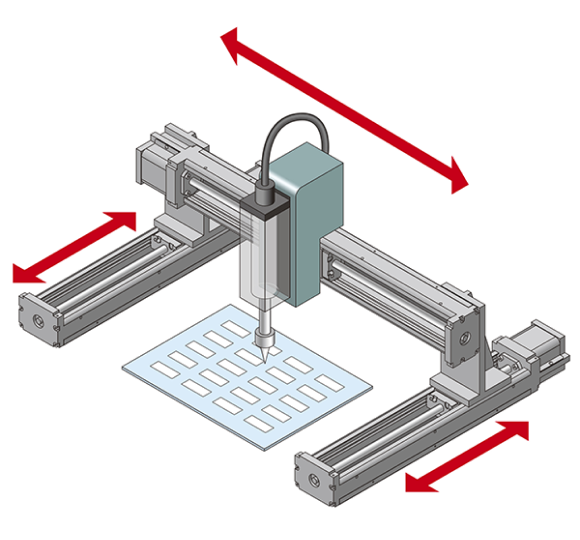

Fluid Dispenser
- A device capable of dispensing a fixed amount of liquid. Efficiency through high precision and high speed dispensing is required.
- Contributing to enhanced work efficiency through superior precision and high rigidity.
-
- BG
- Guaranteed repeatability of ±1 μm ensures highly accurate operations. The high rigidity provided by the 4-row Gothic arch groove structure minimizes vibrations during acceleration and deceleration, enabling high-speed, high-precision dispensing.
-
-
-
-
-
-
Medical・Bio

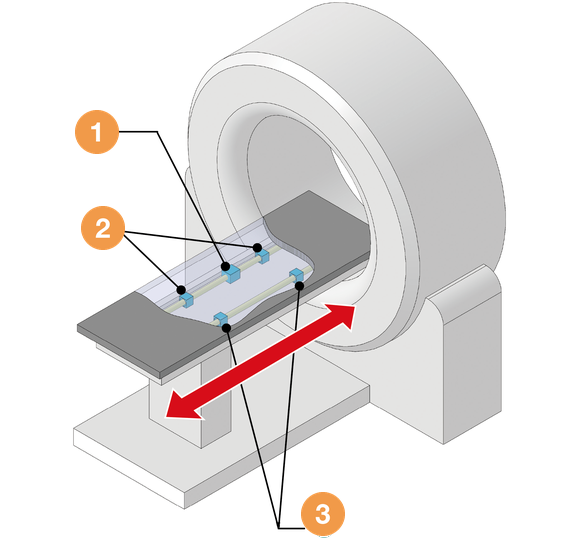

CT Scanner Patient Tables
- A bed designed to transport a reclined patient to the position required for observation.
- Delivering safety and reliability through our proprietary unique mechanism.
-
- 1SS
- By using the Slide Screw (SS) equipped with an overload protection mechanism, the unit will slip and stop if an abnormal load occurs—such as a finger being pinched—minimizing the risk of accidents. This drive system converts the rotational motion of a shaft into linear motion. Long round shafts are easier to manufacture than ball screw shafts, making it simpler to support long-stroke applications. Additionally, its grease-free operation eliminates concerns about lubricant splashing.
-

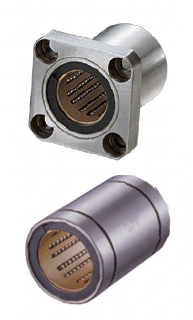

- 2SRE
- Furthermore, when combined with the Slide Rotary Bush, which allows unrestricted linear and rotational motion, significant cost reductions can be achieved compared to designs using linear guides.
-
- 3AK
- Our Block Series, which feature bushings integrated into pillow block housings, helps reduce overall costs and shorten design times.
-
-
-
