Machine Tools

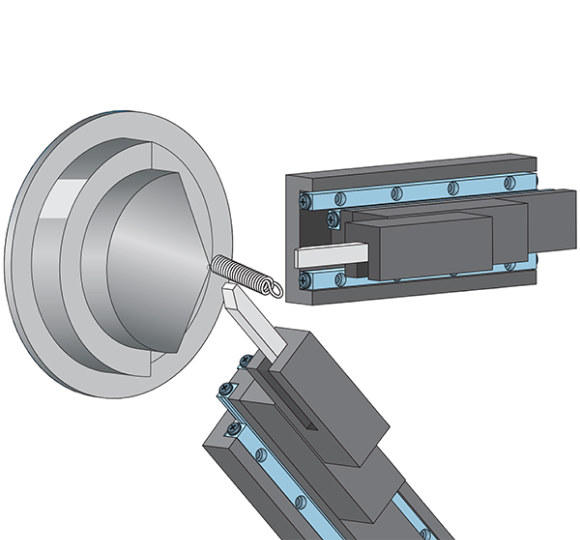

Forming Machine
- Equipment for processing wire into torsion coil springs. Since high-speed continuous production is required, the tool mounting section must be durable enough to withstand rapid and precise repetitive motions.
- Proprietary anti-cage-creep mechanism built for high acceleration and deceleration.
-
- NV
- NB's proprietary anti-cage-creep mechanism offers superior durability compared to conventional rack-and-pinion structures used by other manufacturers.
-
-
-
-
-
-
Machine Tools

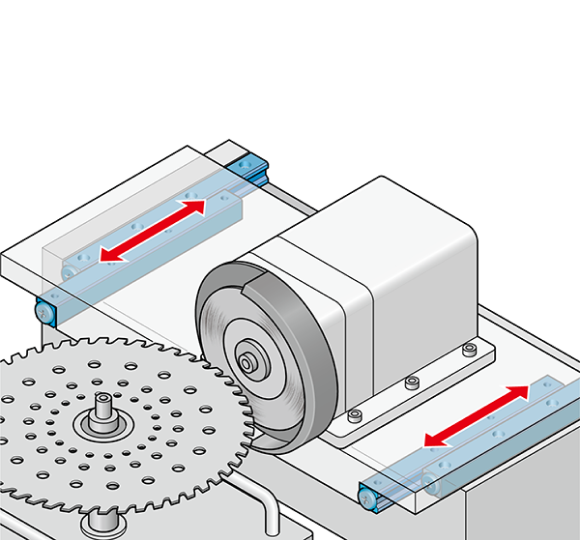

Circular Saw Blade Sharpening Machine
- Equipment for sharpening circular saw blades. To improve operational efficiency, there is a growing demand for fully automated systems.
- Reduced vibration for high-precision machining.
-
- NV・HV・SV
- By using high-rigidity, high-load-capacity slideways, we minimize the impact of vibrations generated during machining. This ensures stable, accurate processing while simultaneously improving operational efficiency.
-
-
-
-
-
-
Machine Tools
Injection Molding Machine
- A machine that heats and melts plastic materials, injecting them into molds at high pressure. It requires exceptional durability to withstand repeated high-load cycles.
- High load capacity with superior durability.
-
- SSP
- The four-row Gothic arch groove design provides high load capacity and high resistance to torque loads, ensuring superior durability.
-
-
-
-
-
-
Machine Tools
Honing Machine
- A machine tool designed for the precision finishing of internal surfaces of metal parts.
- High-speed rotation ready, powered by an angular contact bearing structure!
-
- SPB
- The angular contact bearing structure in the rotating section makes it ideal for high-speed applications such as grinding.
-
-
-
-
-
-
Machine Tools
Thread Grinding Machine
- A machine tool that performs precision machining by using a high-speed rotating grinding wheel to remove material from the workpiece surface.
- Minimize displacement for superior precision machining.
-
- SPB
- The wide spacing between the angular contact bearings provides high resistance to moment loads and minimizes tool displacement during machining.
-
-
-
-
-
-
Machine Tools
Tapping Machine
- A device that cuts threads with a tap. In order to accurately cut threads, rigidity is required to suppress tool vibration.
- A compact model combining high rigidity and high-speed rotation.
-
- SPB-KP
- Combining a four-row Gothic arch linear guide with an angular contact bearing rotating structure, this model enables both high rigidity and high-speed rotation. It minimizes tool-tip runout while allowing for a more compact equipment design.
-
-
-
-
-
-
Machine Tools
Tooling Changer
- Automatic tool change equipment for machining centers, etc. When an exchange mechanism is provided inside a machine, it is required to have a compact design.
- 3-in-1 compact design: Triple the functionality in a single axis.
-
- SPBR
- In addition to linear and rotational motion, precise positioning can be performed with a single axis, contributing to space saving design.
-
-
-
-
-
-
Machine Tools
3D Printer
- A device that creates three-dimensional models by laminating layers. When the shape of model is complex, highly accurate motion is required.
- Broaden your design flexibility with our diverse product lineup.
-
- SM・GM
- Our extensive lineup allows for ideal selection regardless of equipment size. Furthermore, we offer the industry's best variety of user-friendly flange shapes!
-
-
-
-
-
-
Machine Tools

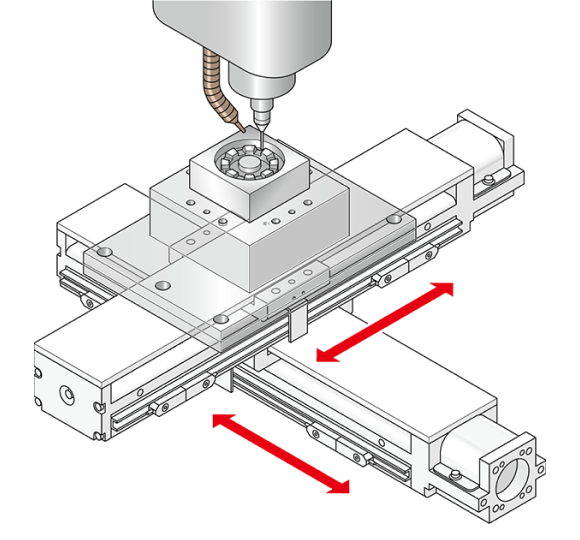

Tabletop Milling Machine
- A simple tabletop size processing machine.
- Achieve precision positioning tables with ease.
-
- BG
- Guaranteed ±1µm repeatability. Ready to function as a precision positioning table just by combining parts.
-
-
-
-
-
-
Conveyor/Loader

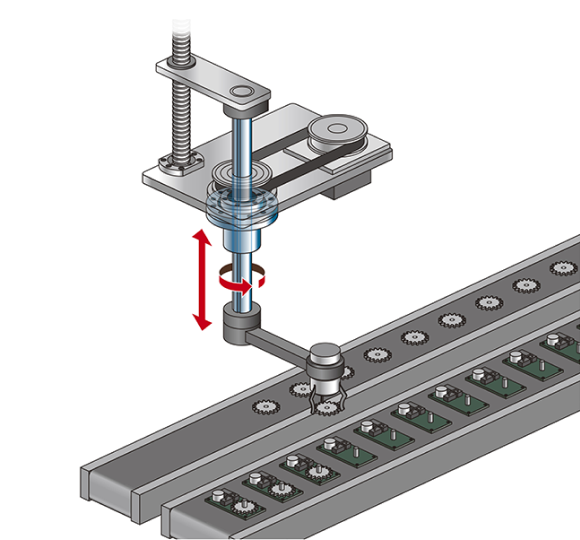

Pick-and-Place Machine
- A mechanism that picks up and transfers workpieces. Saves space and enables accurate transfer between multiple locations.
- Achieved a compact design for Zθ mechanisms.
-
- SPR
- Our lineup includes small diameters starting from just 6mm—a size not offered by competitors—contributing to further miniaturization of your equipment.
-
-
-
-
-
-
Conveyor/Loader
Parallel Link Robot
- A mechanism that controls the arm's tip using multiple links configured in parallel. It offers higher speed and greater precision compared to articulated robots.
- High-precision torque transmission enables accurate θ adjustment.
-
- SSP
- The four-row Gothic arch groove design ensures high-precision torque transmission and rapid vibration damping. Its compact structure also allows for precise θ adjustment.
-
-
-
-
-
-
Conveyor/Loader

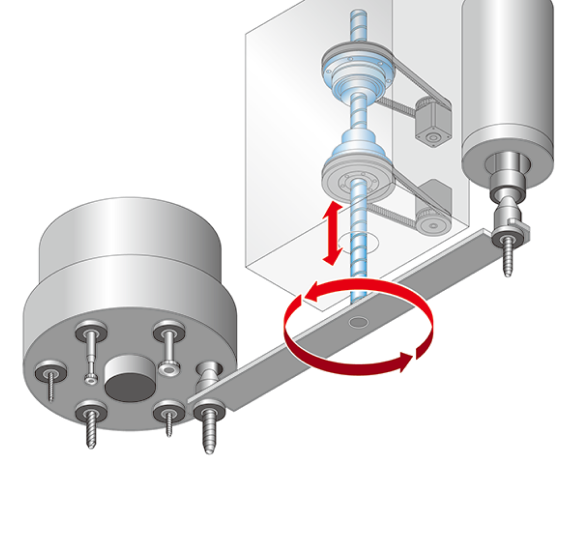

SCARA Robot #1
- An articulated robot that moves horizontally. Smaller robots are required to work in tight spaces.
- 3-in-1 Compact Design: Triple the functionality in a single axis.
-
- SPBR
- Linear motion, rotary motion, and positioning are achieved with a single axis, contributing to compact system design.
-
-
-
-
-
-
Conveyor/Loader

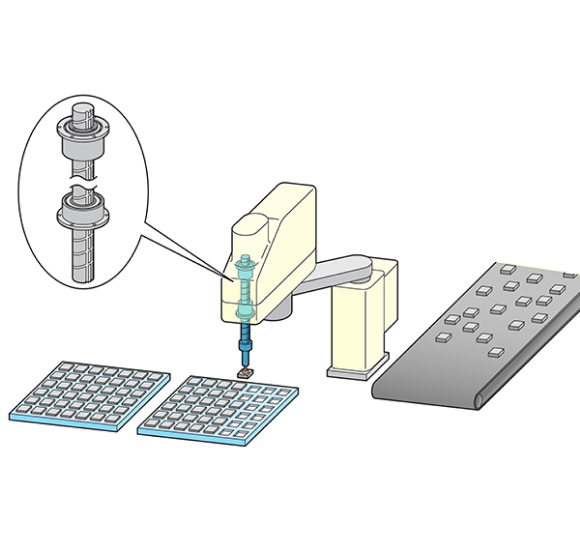

SCARA Robot #2
- An industrial robot with an arm that operates horizontally.
- Our customization enables lower costs and a more compact design.
-
- SPR+SRE
- Our custom solution coaxially combines a rotary ball spline with a slide rotary bush, contributing to lower costs and a more compact equipment design.
-
-
-
-
-
-
Conveyor/Loader

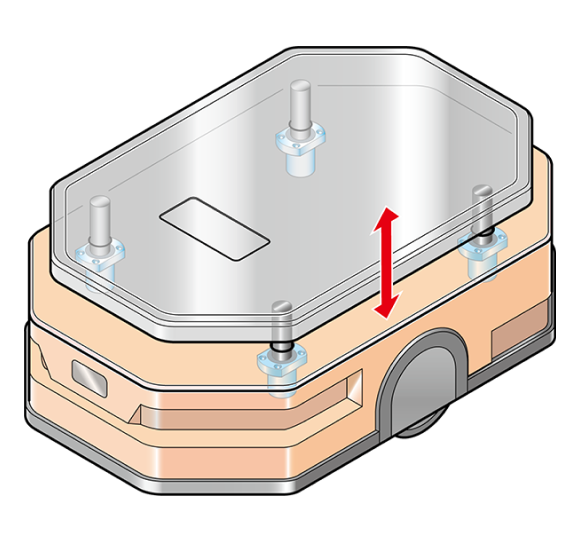

Automated Guided Vehicle
- Self-driving robots that handle transportation work in factories and warehouses. In order to automate the transportation process, it is necessary to arrange a large number of devices, so cost control is also required.
- Compatible with any AGV thanks to our extensive lineup!
-
- SM・GM
- Used in the lifting mechanism of transport vehicles. It is possible to design a lifting section with lower cost. A wide range of variations allows you to select the best one for your equipment.
-
-
-
-
-
-
Conveyor/Loader
Lifting Machine

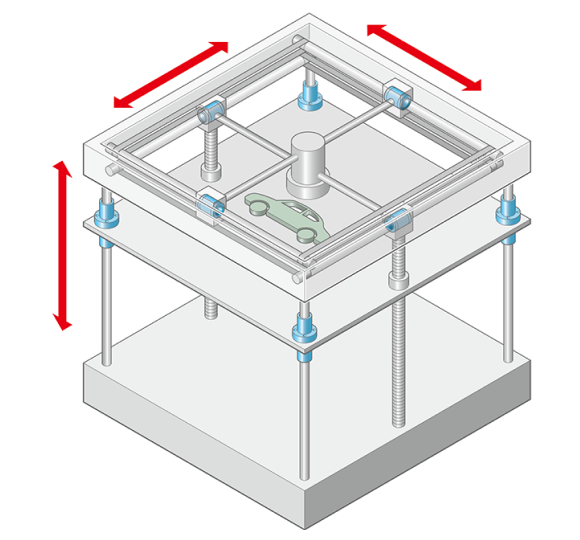

- A mechanism for lifting and transporting workpieces. It requires smooth operation without galling.
- Flange type design for easy adjustment.
-
- SM・GM
- We offer the industry's most extensive lineup of flange types, designed for easy outer cylinder positioning. There is no need for high-precision hole diameters or positioning, ensuring a smooth and seamless installation.
-
-
-
-
-
-
Conveyor/Loader

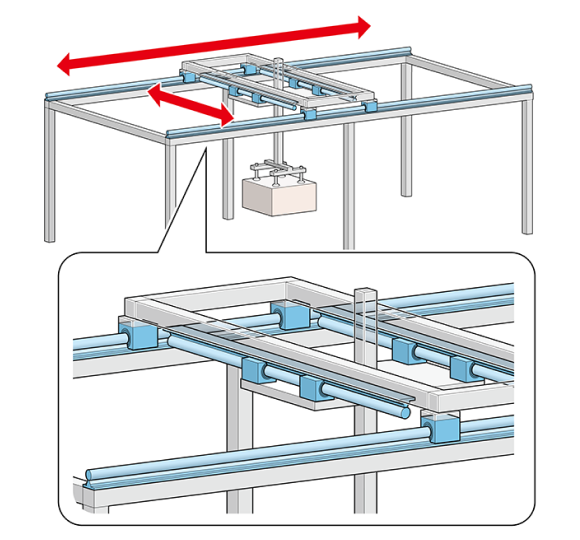

Overhead Conveyor Line
- A device that suspends and transports workpieces in a production factory. For reasons of cost and light weight, an aluminum frame is sometimes used.
- Works perfectly even with flexible aluminum frames!
-
- TK
- Even when mounted on low-rigidity aluminum frames, it absorbs deflection to ensure smooth operation.
-
-
-
-
-
-
Conveyor/Loader

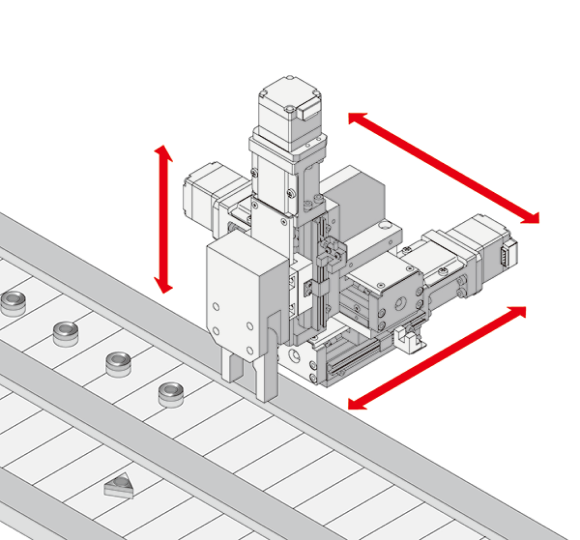

Orthogonal Robot #1
- A 3-axis pick and place Cartesian robot using a single-axis actuator. When automating the conveying process, there is a need to reduce costs because there may be cases in which they are placed in multiple places.
- Simple, precise transport with Cartesian robots!
-
- BG
- We guarantee a repeatability of ±1 μm, making it ideal for handling micro-components. Cartesian robots built from single-axis actuators offer several advantages over articulated robots, including lower costs, easier control, and significant space savings.
-
-
-
-
-
-
Conveyor/Loader
Orthogonal Robot #2
- A Cartesian robot that combines single-axis actuators in multiple stages. Used for container palletizing, etc.
- Achieve long strokes with Cartesian robots! Contributing to simpler equipment design.
-
- BG
- A multi-stage configuration provides a long stroke while maintaining a compact, space-saving footprint. The steel guide rails ensure high rigidity and enable precise operation.
-
-
-
-
-
-
Conveyor/Loader
Center Positioning Machine
- A device to recenter objects.
- Easy positioning with just a single actuator!
-
- BG
- By using a specialized left-right screw actuator, opening and closing motions can be performed on a single axis. It can be easily integrated into production lines to enable precise center positioning.
-
-
-
-
-
-
Conveyor/Loader

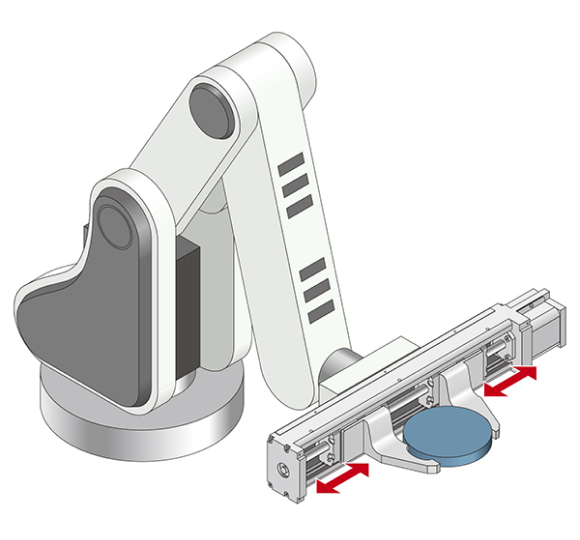

Transfer Arm Robot
- Transfer parts by installing it between assembly and processing machines. No need for detailed adjustments like with a robot hand.
- The Universal Gripper: Handles any size with ease!
-
- BG
- By using a specialized left-right screw actuator, opening and closing can be performed on a single axis. Compared to standard chucks or robot hands, this solution supports a much wider range of workpiece sizes, from small to large.
-
-
-
-
-
-
Food
Labeller
- A high-speed labeling and sticker application system. By adding a θ mechanism, the application angle can be adjusted for precise placement.
- Achieves equipment downsizing through a compact outer cylinder design.
-
- SSP-AM
- With a small-diameter lineup starting from φ4 and a compact outer cylinder, our products are ideal for small-scale labeling machines.
-
-
-
-
-
-
Food

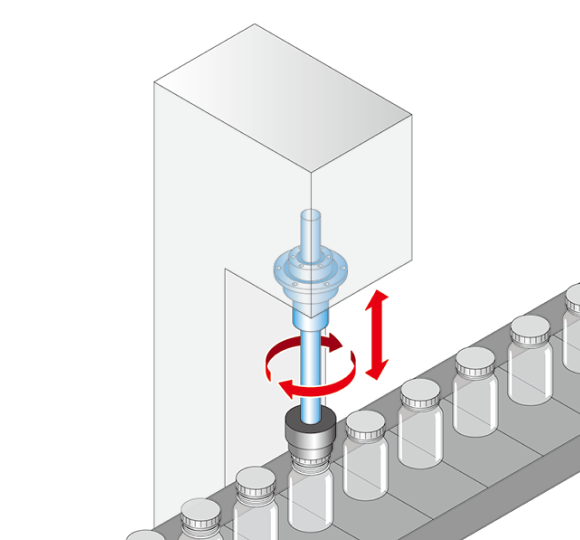

Bottle Cap Tightener
- A device that closes bottle lids on a production line. A compact mechanism is required that can handle high acceleration/deceleration movements in vertical and rotational directions.
- A compact rotary mechanism that contributes to saving space in equipment design.
-
- SPR
- The rotating part has a cross-roller structure, making it ideal for designing compact turning mechanisms. Contributes to space saving on production lines.
-
-
-
-
-
-
Food

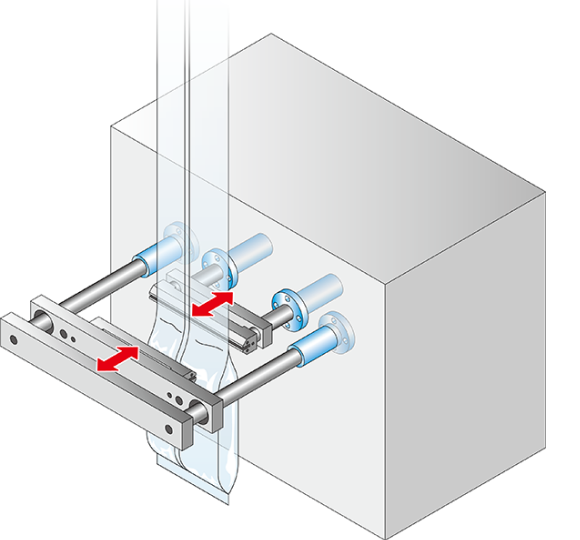

Vertical Packaging Machine
- A device that forms and seals film into a cylindrical shape for packaging. Used for foods and medicine packaging that require mass production.
- Corrosion-resistant specifications ensure reliability for use in the food industry.
-
- SM・GM
- Our extensive lineup allows for the perfect selection to match your equipment size. With options for corrosion-resistant specifications and food-grade grease, these units can be used with confidence in the food industry.
-
-
-
-
-
-
Food

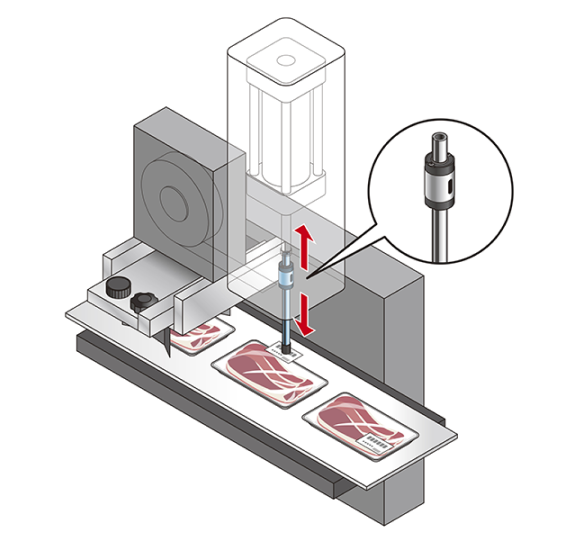

Ultrasonic Food Cutter
- This system uses ultrasonic waves to create microscopic blade vibrations, minimizing frictional resistance to the absolute limit. It enables clean cutting of soft food items without deforming their shape.
- Seamless Performance, Reliable Quality.
-
- SM・GM
- Used in the cutter's sliding mechanism. It achieves smooth, wobble-free linear motion while maintaining high-precision ultrasonic cutting.
-
-
-
-
-
-
Food

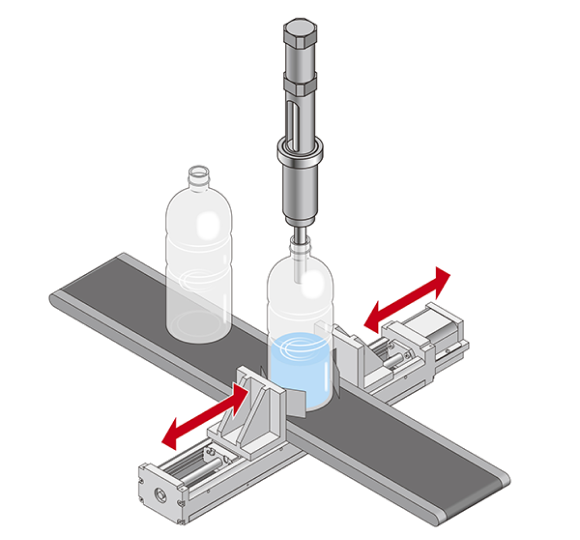

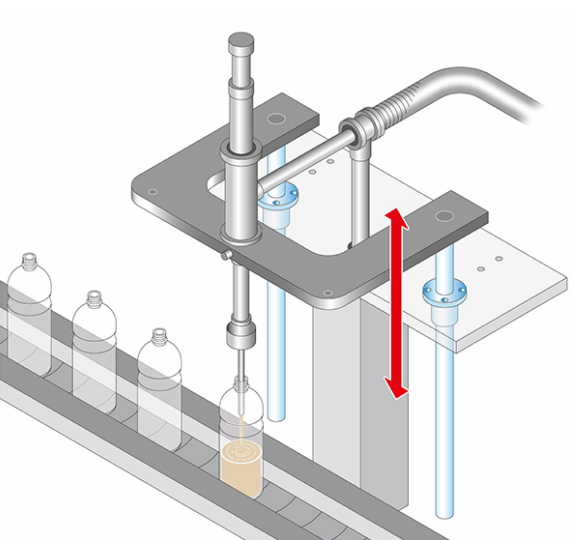

Filling Machine
- Pours a fixed amount of liquid into a container. Needs smooth movement without rattling and binding.
- Simple design that empowers manual task automation.
-
- SM・GM
- The use of bushings on the vertical shaft allows for a simple equipment design. Smooth rolling motion eliminates mechanical catching, contributing to the automation of manual tasks.
-
-
-
-
-
-
Food

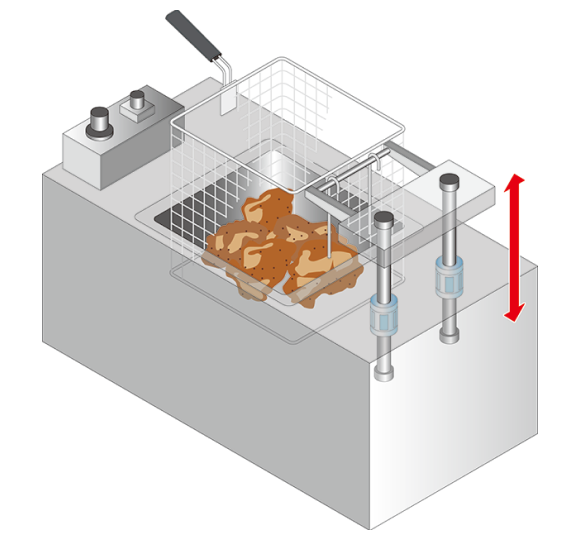

Auto Lift Fryer
- A device that automatically frys foods.
- Durability that far exceeds that of ball bushings.
-
- TK
- TOPBALL is utilized in the fryer's lifting mechanism. With more than double the load rating of conventional ball bushings of the same shaft diameter, it significantly enhances equipment durability.
-
-
-
-
-
-
Others

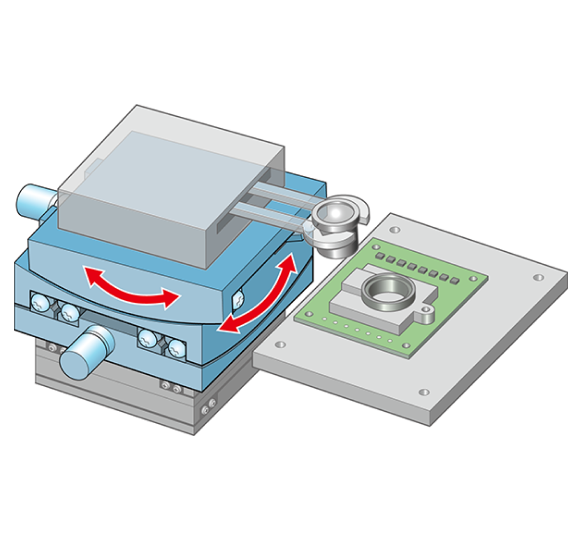

Camera Module Assembly Machine
- A device that adjusts the optical axis of the sensor and lens unit and assembles small camera modules for smartphones. Adjustment is required through miniscule positioning and angle adjustments.
- High-precision angle adjustment via rolling motion!
-
- RV・RVF
- Used for camera module angle adjustment. The smooth, backlash-free rolling motion makes it ideal for fine angular tuning.
-
-
-
-
-
-
Others

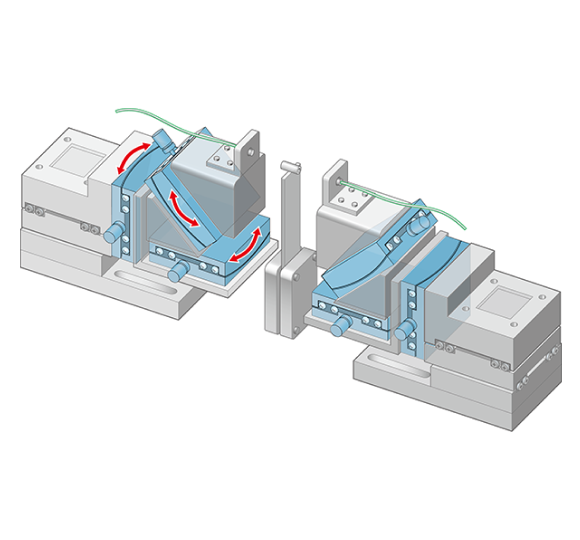

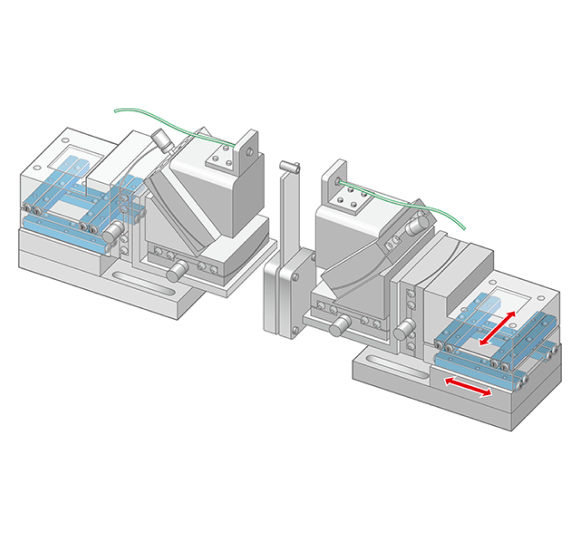

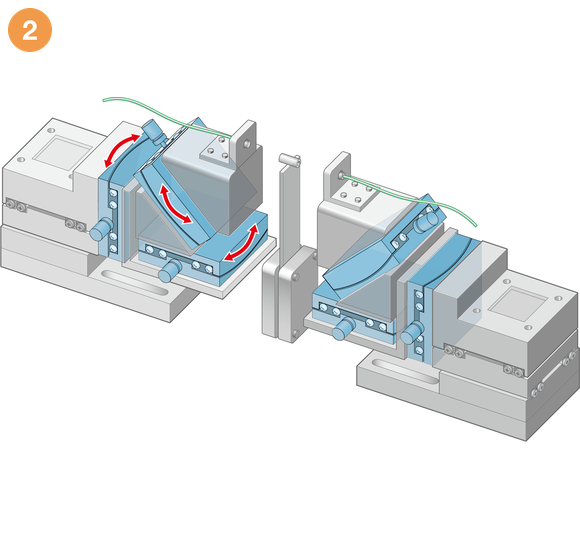

Fiber Optic Fusion Splicer
- A device used to connect the end faces of two optical fibers positioned on the left and right. Precise alignment of the center axes is essential to minimize connection loss.
- Compact solutions for multi-axis control systems!
-
- 1NV・HV・SV
- The simple cross-roller structure enables a more compact equipment design.
-
- 2RV・RVF
- The rolling mechanism, utilizing precision cross-rollers, ensures backlash-free operation and accurate tilt angles.
-
-
-
-
-
-
Others

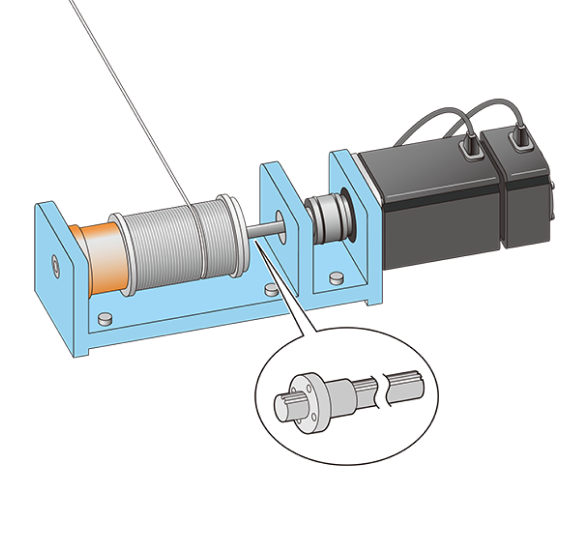

Coiling Machine
- A device that winds wires evenly to prevent them from getting tangled when manufacturing coils. In order to wind the wire with high density and uniformity, high tension is applied to the metal wire for precise positioning.
- Resistant to torque loads, contributing to a longer service life.
-
- SSP
- The four-row, four-point contact Gothic arch groove provides high torque load capacity. In applications with heavy torque loads, this enables a significantly longer equipment service life.
-
-
-
-
-
-
Others
Industrial Sewing Machine
- High-speed, high-performance industrial sewing machines with complex structures used in garment factories.
- Streamline your positioning mechanisms with combined linear and rotary motion!
-
- SSP
- Used in the positioning mechanism of the fabric holder. It achieves multi-directional movement (front, back, left, and right) with a single, compact axis through combined linear and rotary motion.
-
-
-
-
-
-
Others

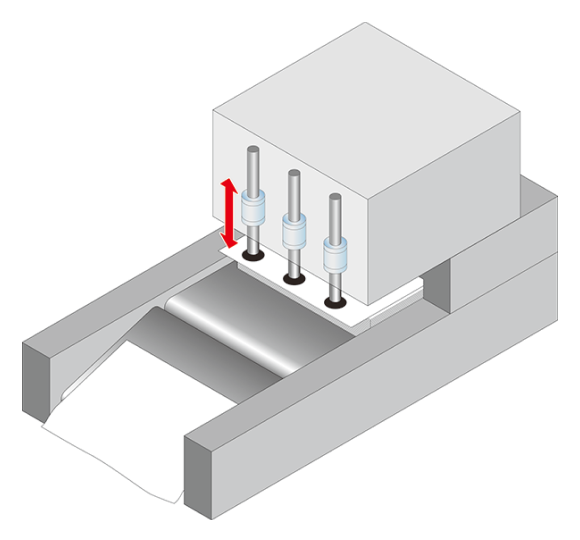

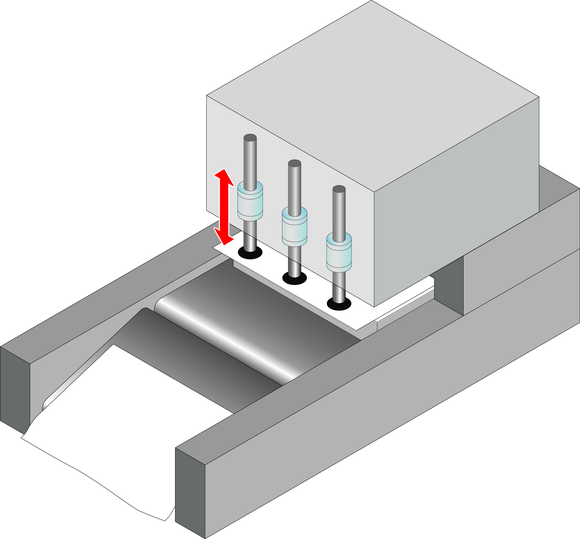

Printer
- A device that applies ink to a plate and prints on paper.
- Simple design for high-precision lifting operations.
-
- SM・GM
- Slide bushings with round shaft guides feature a simple design, making them ideal for lifting mechanisms. A wide variety of flanged types are available, simplifying the design of mounting sections.
-
-
-
-
-
-
Others

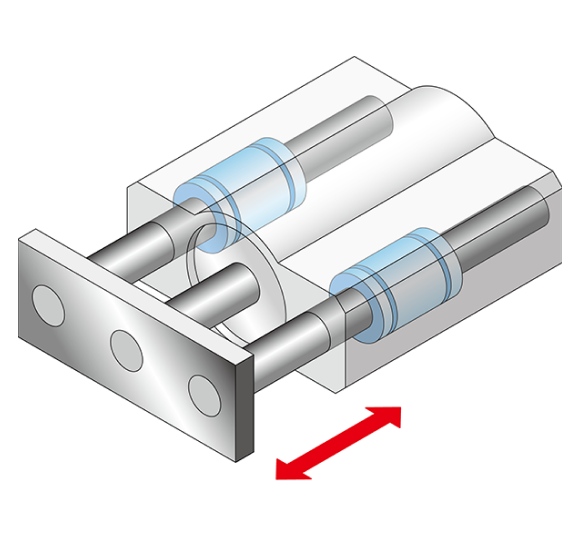

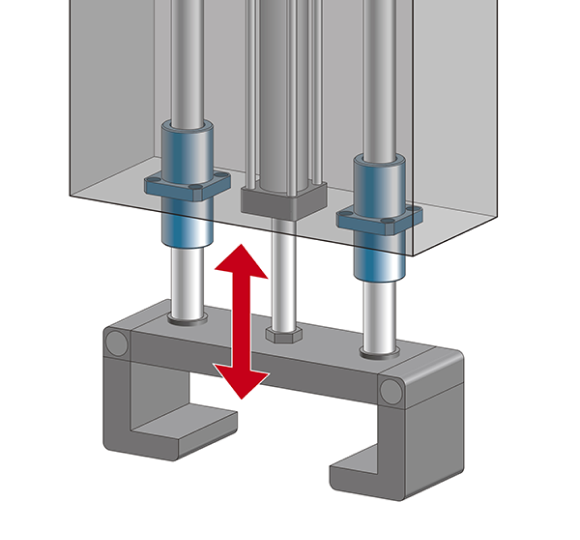

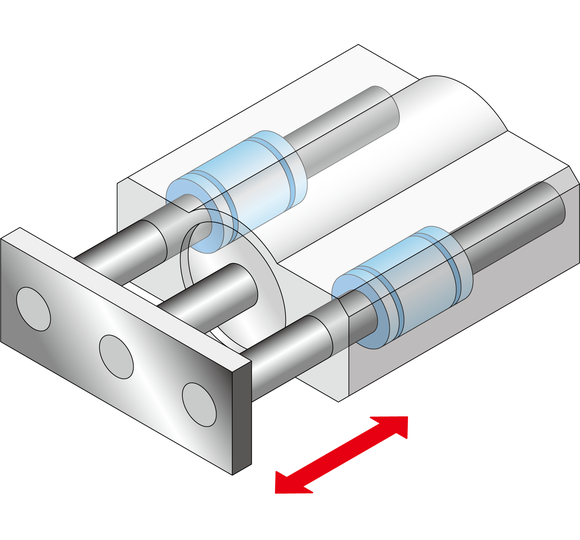

Guided Air Cylinder
- Air cylinder with integrated round shaft guide. Used for workpiece feeding and positioning mechanisms in automatic machines, etc.
- Versatile for any design. The origin of linear motion!
-
- SM・GM
- Enables smooth linear motion at a low cost. Its simple round-shaft guide design makes it versatile for a wide range of applications.
-
-
-
-
-
-
Others

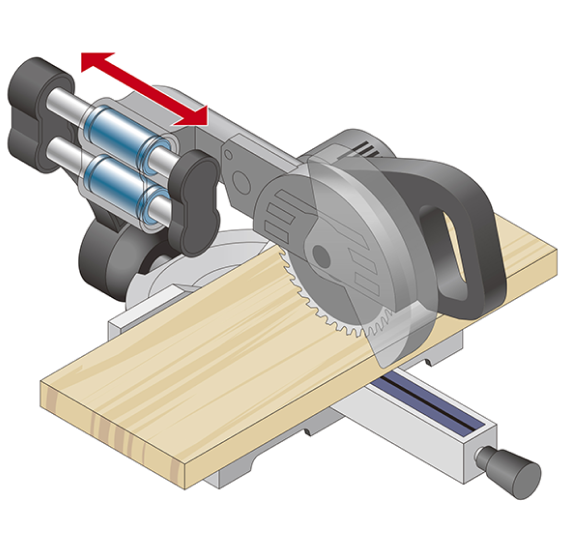

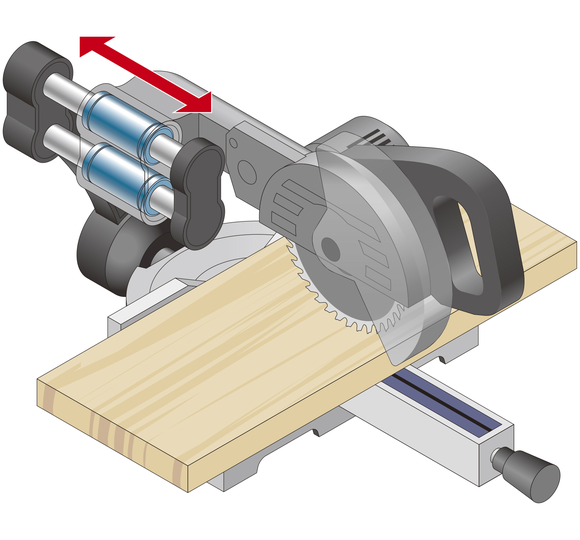

Track Saw
- Stationary electric saw.
- Stable operation even under moment loads!
-
- SM・GM
- Double and triple types are resistant to moment loads, ensuring smooth operation even under heavy cutting forces.
-
-
-
-
-
-
Others

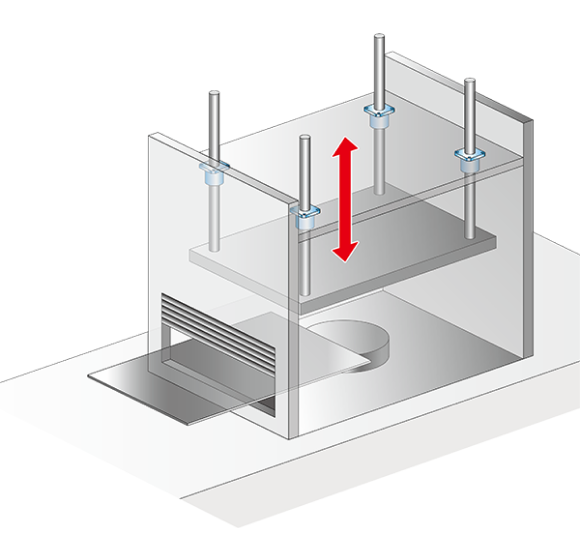

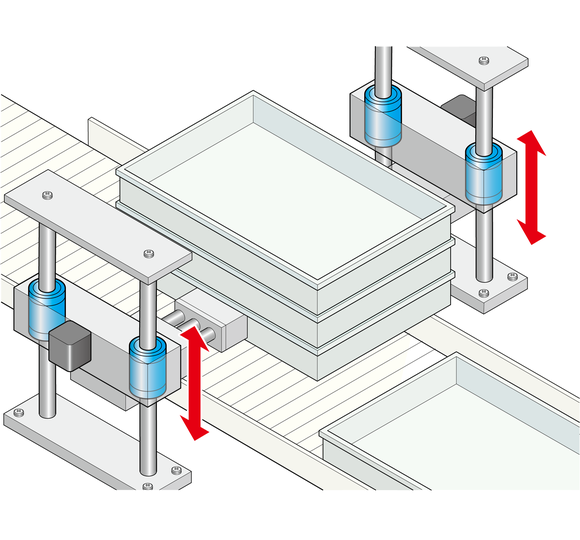

Stacking Machine
- An automated system for vertically stacking pallets and containers. A simple design is essential to optimize space within production lines.
- Widely used in production lines.
-
- SM・GM
- The simple round-shaft guide design enables low-cost, streamlined lifting mechanisms. Additionally, a wide range of options, such as corrosion-resistant specifications, allows you to select the ideal model for your environment.
-
-
-
-
-
-
Others

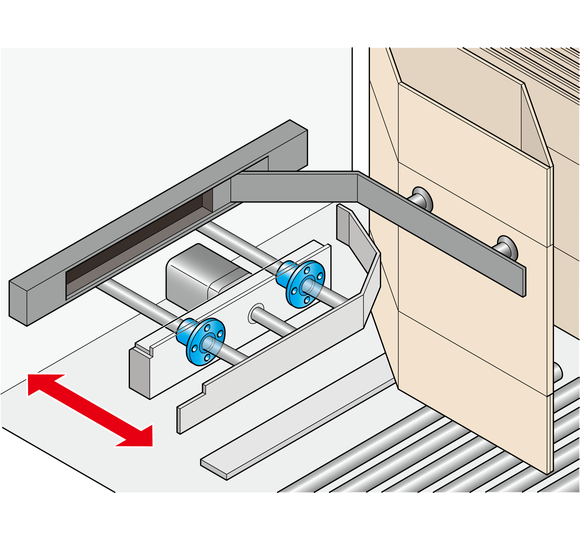

Case Former
- Equipment that assembles flat cardboard sheets into box shapes. As labor-saving measures advance, the demand for automated packaging continues to grow.
- Ideal for reducing automation costs!
-
- SM・GM
- Achieve smooth linear motion cost-effectively. With an extensive lineup of flanged types, it is widely applicable for both transport and lifting units.
-
-
-
-
-
-
Others

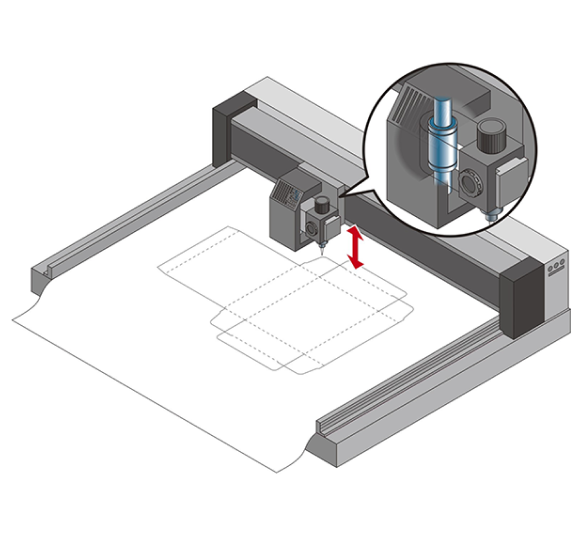

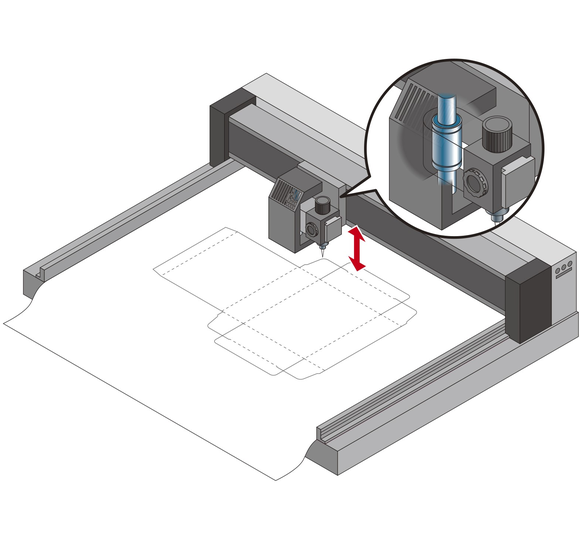

Cutting Plotter
- Equipment that cuts stickers, posters, and patterns based on design data created on a computer.
- Smooth lifting for precision cutting—exactly as intended!
-
- SM・GM
- Used in the cutter's lifting mechanism. It achieves precise, high-speed cutting through play-free linear motion.
-
-
-
-
-
-
Others

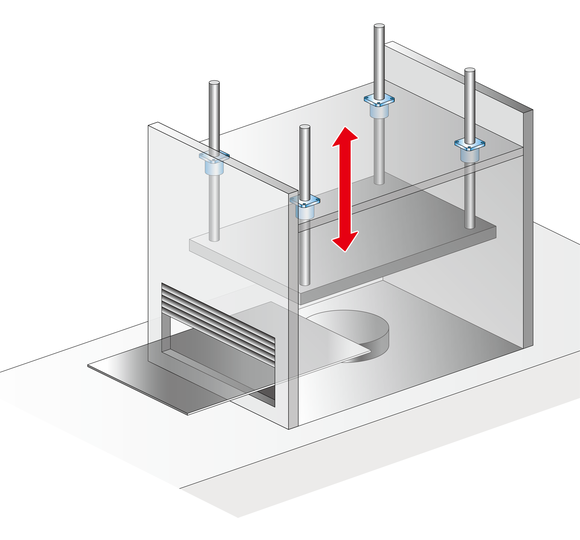

OLED Vacuum Evaporator
- Vacuum evaporation equipment used to form light-emitting layers by depositing particles onto glass substrates. In a vacuum environment, properties such as heat resistance and low outgassing are essential.
- Available in all-stainless steel, making it suitable for use in vacuum environments.
-
- SMS
- Used in the workpiece lifting mechanism. The all-stainless steel specification allows for use in vacuum environments and provides excellent heat and corrosion resistance.
-
-
-
-
-
-
Others

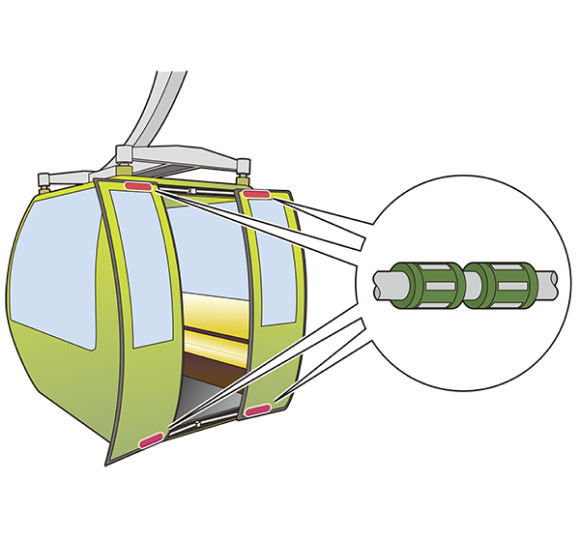

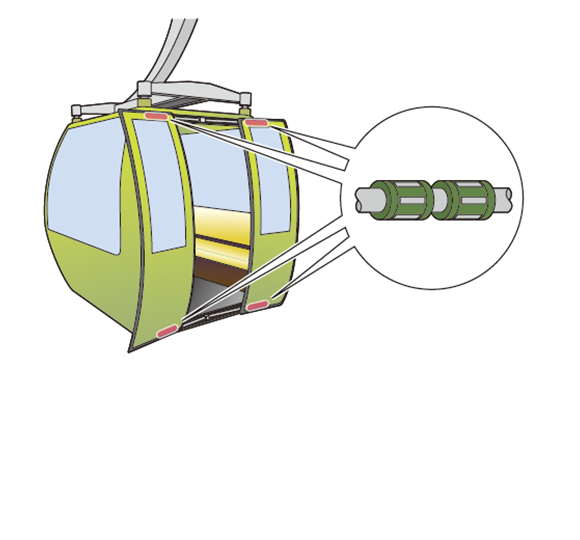

Sliding Door
- Doors of gondolas, trains, etc. Opening and closing requires smooth operation, whether manual or automatic.
- Smooth opening and closing, even with shaft deflection!
-
- TK
- Even with long strokes that cause shaft deflection, the self-aligning feature ensures smooth operation.
-
-
-
